Warm Heart

The “Warm Heart” TK85.WH e TK100.Alu-Wood ranges represent the highest performance systems and innovative range of TERMIKA.

Static is also greatly increased due to the high depth of its profiles that make possible the realization of even larger doors and windows.

The interruption of the thermal bridge is made with the insertion of a revolutionary bar made in ABS, a non-hygroscopic material which allows to obtain a thermal trasmittance value considerably lower than the same node realized with an equivalent polyamide bar.

Mechanisms and accessories of high quality and high functionality and design also provide for the “Warm Heart” remarkable performance:

  • Euro-groove hardware or front mounting tape in the groove 16 mm.
  • Turn-tilt fittings up to kg. 200 – wings with capacity up to kg. 300.
  • Hinges traditional view or with a concealed hinge, with the possibility of mounting anti-burglary equipment and the most modern home automation.

The wide range of profiles, the large repertoire of accessories and quality finishing, allow the creation of all types of frames, with windows in one, two or more wings, with fixed sides or vasistas openings or sliding openings in parallel also bicoloured aluminium.

Complete the range, the entry doors, integrated to the series for the section and openings, made with controlled scroll bars in polyamide to reduce the bending effect or “Bi-metal” and provided with the best locks and closing systems of security offered in the market.

Wide range of customizations with smooth wings or blunt solutions , and with the possibility to install squared, rounded or chamfered glazings and with un-hinging screws

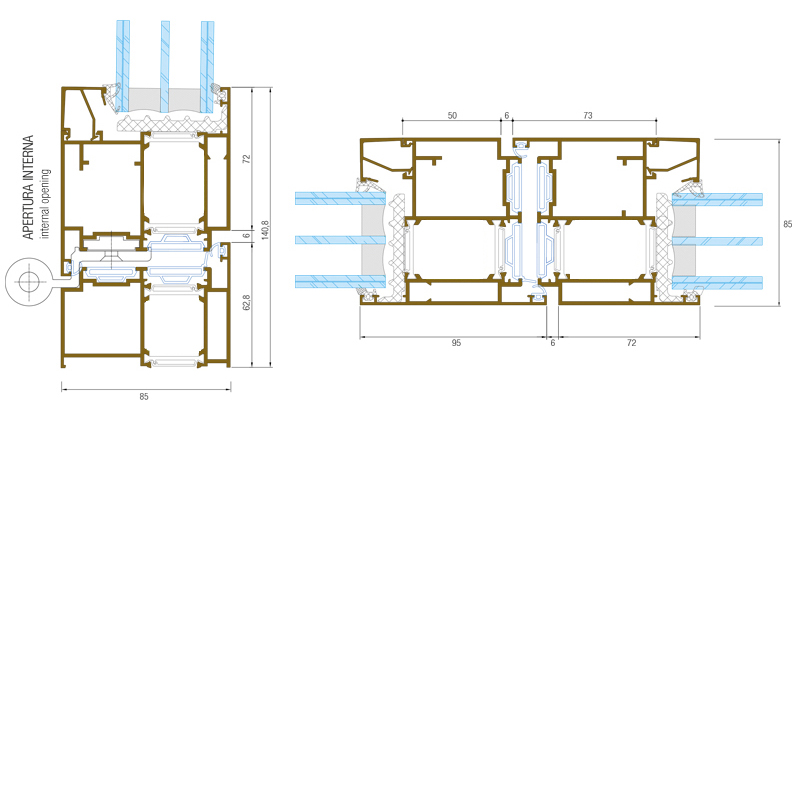

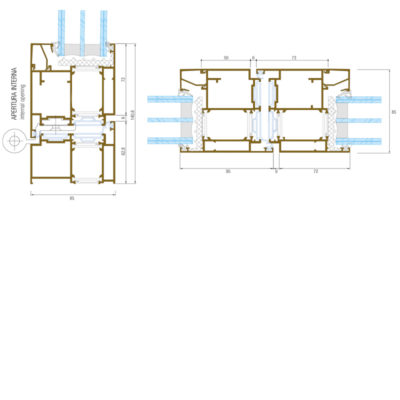

Frame 85 mm

Wing 95 mm

Glasses up to 58 mm. (even triple glass).

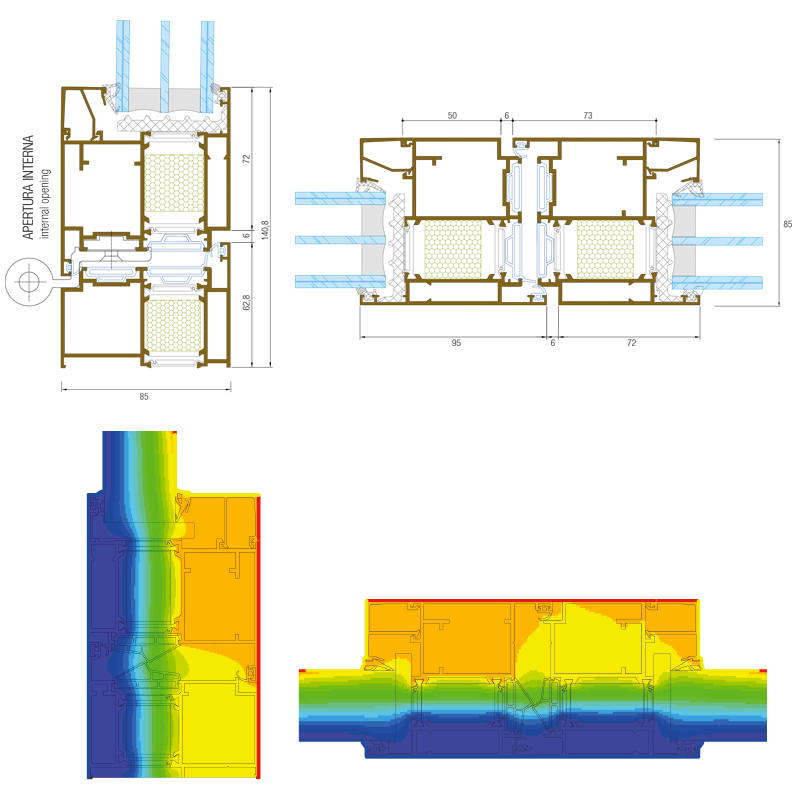

Thermal insulation (values obtained on a 1 window 1230 x 1480 mm.)

Uf 0.97 W/m K

Ug 0,5 – Psi 0,036

Uw 0.72 W/m K

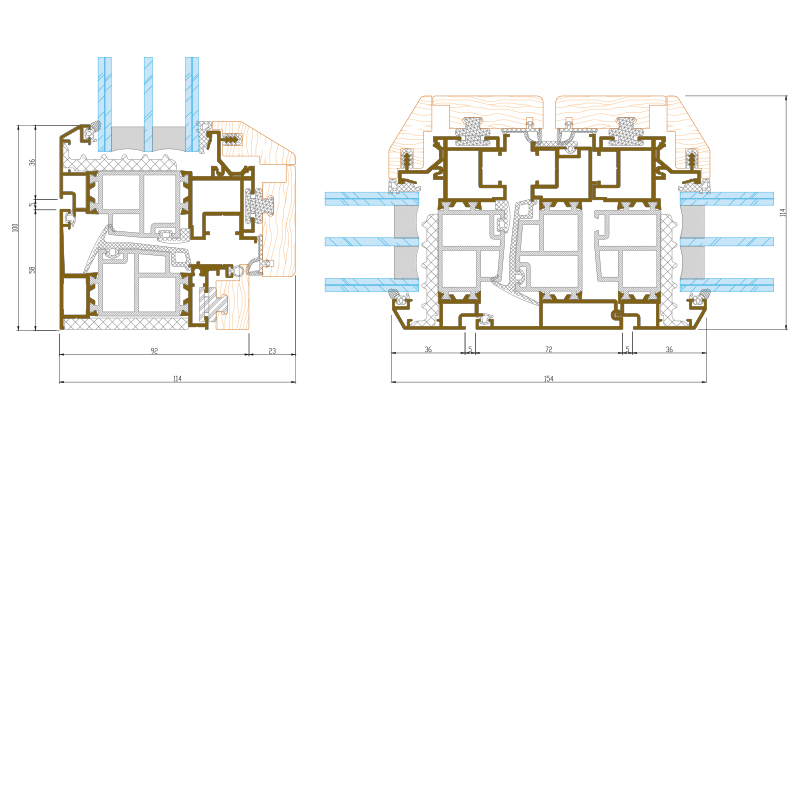

Frame 92 mm

Wing 115 mm

Glasses up to 58 mm. (even triple glass).

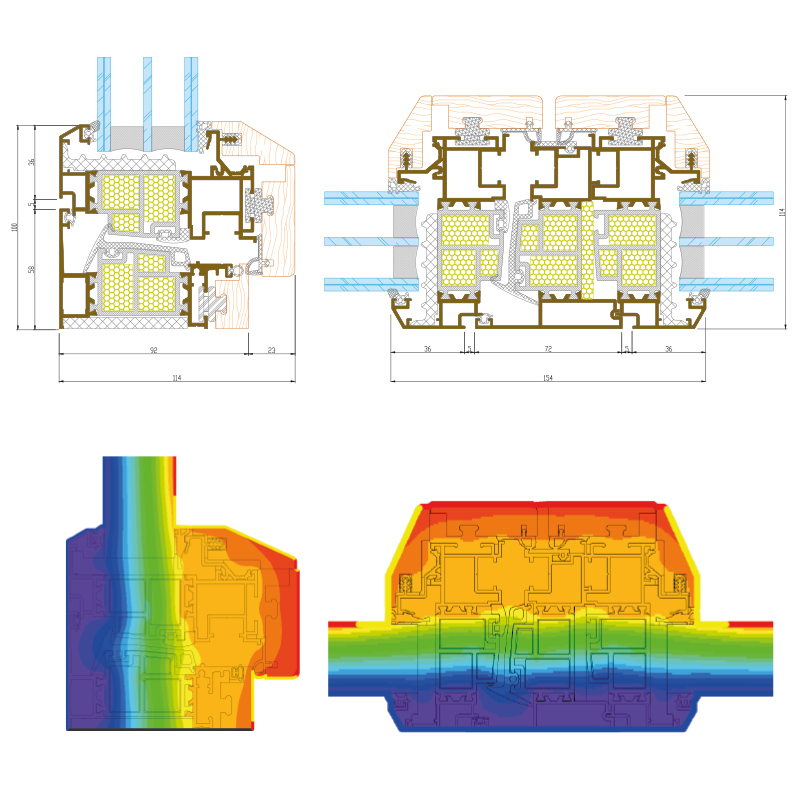

Thermal insulation (values obtained on a 1 window 1230 x 1480 mm.)

Uf 0,92 W/m K

Ug 0,5 – Psi 0,036

Uw 0,70 W/m K


Thermal insulation (values obtained on a 1 door 1230 x 2180 mm.)

Uf 1,79 W/m K

Ug 0,5

Uw 1 W/m K

Sealing performance, thermal and acoustic according to certified laboratory test.
