Harmony

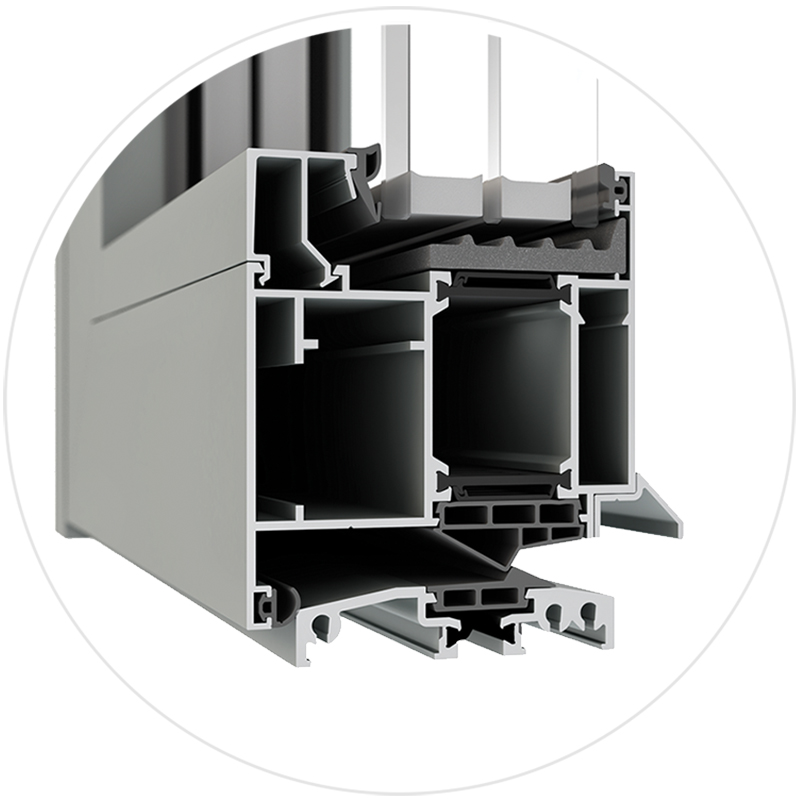

The “Harmony” TK80.HW (High-performance Windows), synergistically keeping the shell of profiles and accessories in the first division, with the insertion of a polyamide bar 42 mm. to allow the interruption of the thermal-break, the excellent static and the perfect balance of its profiles, represents the most commercial and most widely used by users of the systems for windows and doors Termika, because its performance of all relief place it on the top between the products used in the market.

Mechanisms and accessories of high quality and high functionality and design also provide for the “Harmony” remarkable performance:

  • Euro-groove hardware or front mounting tape in the groove 16 mm.
  • Turn-tilt fittings up to kg. 200 – wings with capacity up to kg. 300.
  • Hinges traditional view or with a concealed hinge, with the possibility of mounting anti-burglary equipment and the most modern home automation.

The wide range of profiles, the large repertoire of accessories and quality finishing, allow the creation of all types of frames, with windows in one, two or more wings, with fixed sides or vasistas openings or sliding openings in parallel also bicoloured aluminium.

Complete the range, the entry doors, integrated to the series for the section and openings, made with controlled scroll bars in polyamide to reduce the bending effect or “Bi-metal” and provided with the best locks and closing systems of security offered in the market.

Wide range of customizations with smooth wings or blunt solutions , and with the possibility to install squared, rounded or chamfered glazings and with un-hinging screws.

TK80.HW

Frame 79 mm

Wings 89 mm

Glasses up to 52 mm. (even triple glass)

Thermal insulation (values obtained on a 1 window 1230 x 1480 mm.)

Uf 1.46 W/m K

Ug 0,5 – Psi 0,036

Uw 0.83 W/m K

TK80.HD

Thermal insulation (values obtained on a 1 door 1230 x 2180 mm.)

Uf 1.97 W/m K

Ug 0,5

Uw 1.07 W/m K

Sealing performance, thermal and acoustic according to certified laboratory test.
